Ceramic/Rubber Standart Plates

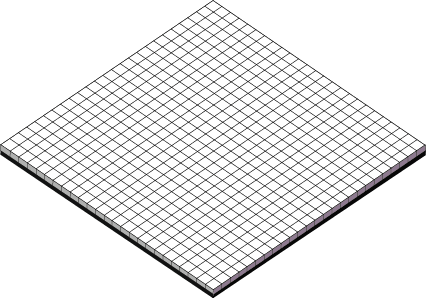

W-LOX Standart Plates are high abrasion resistant rubber panels with 92% alumina oxide (Al₂O₃) tiles embedded into them.

These tiles are as hard as diamonds and can be a solution to all your wet and dry sliding abrasion problems. Thanks to this feature, wet sticky materials don’t build up and this prevents caking as well.

Sales Enquiry
View Catalouge
wlox-25-15@3x-8
wlox-10-4@3x-8
wlox-hex-6-6@3x-8
Description Dimensions
Type Plate Ceramic Tiles
W-Lox 4/4 8x500x500 mm 4x20x20 mm

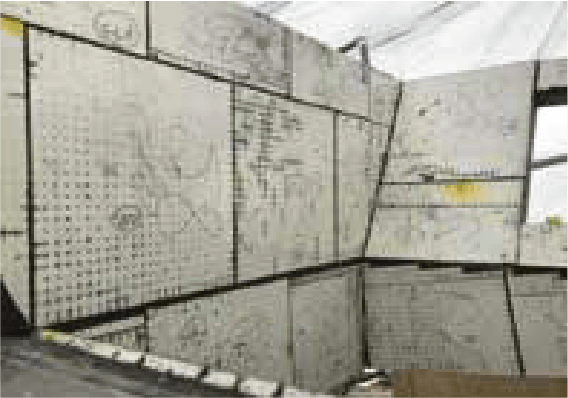

W-Lox 10/4 14x500x500 mm 10x20x20 mm

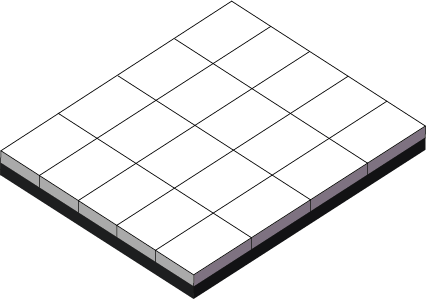

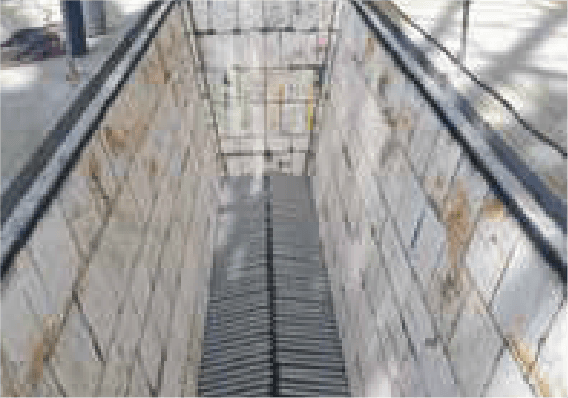

W-Lox 25/15 40x500x600 mm 25x100x150 mm

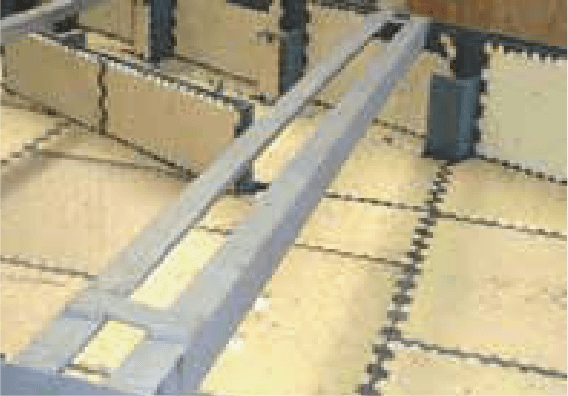

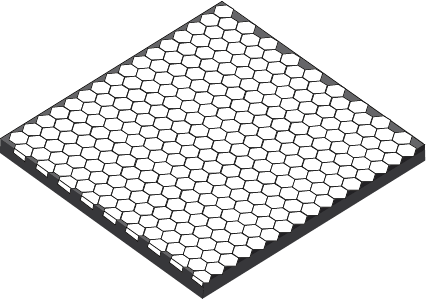

W-Lox HEX 6/6 12x510x525 mm SW 32x6 mm
W-Lox 20x20 20x20x10 mm
Application Areas In mining, gravel, sand and stone breaking mills and other industrial sectors In pipelines, vibratory feeders, cyclones, skips, bunkers, chutes, loading points, slides, hoppers, silo
]]> Surface Protection https://windustry.co/products/surface-protection/ Fri, 06 Jan 2023 10:58:24 +0000 https://windustry.co/?post_type=industify-project&p=2463

Surface Protection

The portfolio of products for corrosion protection exhibits a high degree of resistance against exposure to chemical, thermal and mechanical stresses.

The premium class materials meet our expertise in the field and ensure that your plant continues to operate economically and eectively.


With up to 200 technicians, we are ready to serve you in your corrosion protection applications wherever they are. You leave us the complete Project Management and we take care of eveything for you including quality control, supervisor inspections etc.

Sales Enquiry
View Catalouge
]]> Pulley Lagging https://windustry.co/products/pulley-lagging-conveying-solutions/ Fri, 16 Dec 2022 06:13:57 +0000 https://windustry.co/?post_type=industify-project&p=1296

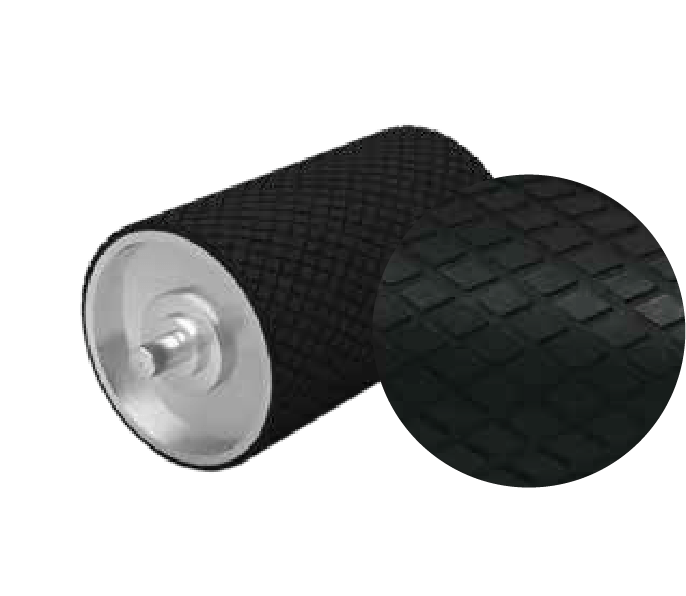

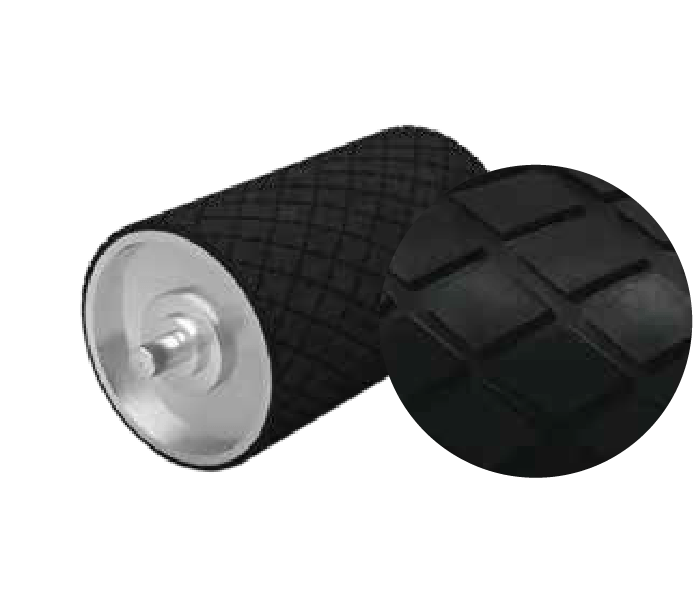

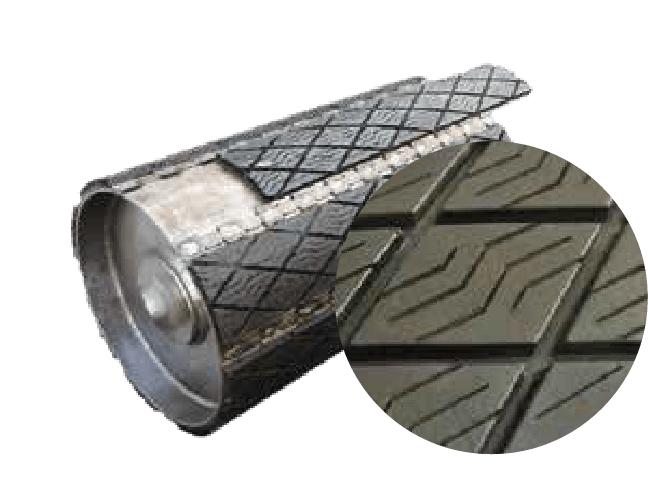

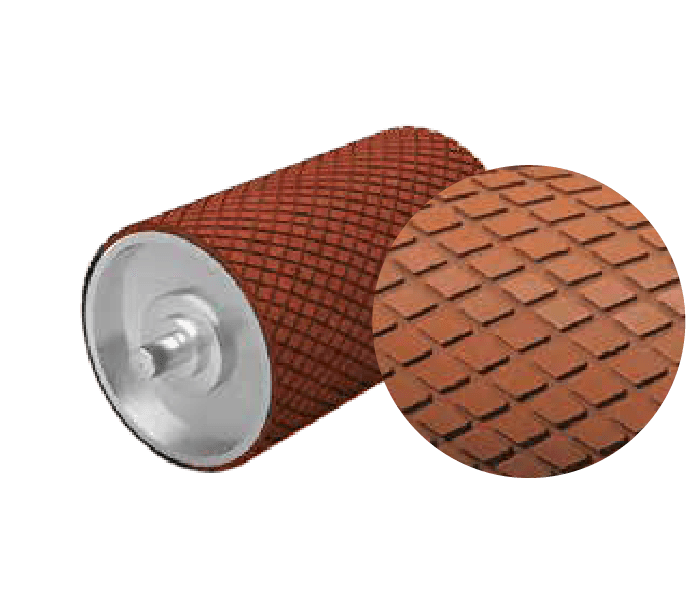

Pulley Lagging

To improve the coefficient of friction between the conveyor belt and the drive pulley, pulleys are lagged with profiled rubber. These profiled laggings offer optimum solutions to the problems.


Our high quality products are the solution to wear, corrosion, noise and caking problems on many parts of the conveyor system.

Sales Enquiry
View Catalouge
Features
  • Full embedment of ceramic tiles in the rubber matrix without tiles touching each other
  • Expansion gap allows compensation of stress peaks also in axial direction
  • Profile geometry between ceramic rows sheds of water and dirt even in wet and muddy conditions
  • Rough, nubby ceramic surface provides perfect grip
]]> Tanker Lining https://windustry.co/products/tanker-lining-surface-protection/ Fri, 16 Dec 2022 05:59:53 +0000 https://windustry.co/?post_type=industify-project&p=1286

Tanker Lining

Each road tanker has its own specifications and operational needs. Our rubber lining services
are tailored to meet your precise requirements, ensuring a perfect fit and optimal performance.

Our lining solutions oer outstanding resistance to abrasion, chemicals, and extreme temperatures, providing unmatched durability.

They act as a protective barrier, preventing corrosion and chemical reactions that can compromise the integrity of your road tanker. By reducing the risk of leaks and contamination, we
prioritize the safety of your cargo and the environment.

Storing any chemical causes corrosion leading to downtime, maintenance and re-applying the lining. Hazardous chemicals drastically increase these problems. We expect the special rubber lining applications to help us about below points

  • Chemical resistance to specific agents
  • Acid proof
  • Good bonding to steel subtract
  • Flexibility and elasticity
  • Capacity to transport several agents
  • East cleaning
  • Easy test inspection and repair
Sales Enquiry
View Catalouge
tanker linings
tanker-lining-2-2
tanker-lining-2
tanker-lining-1-2
tanker-lining-1
tanker lining product detail
rubber-lining-1
rubber tanker liningstank lining
Drag

Explosive

Corrosive

Harmful

Oxidising

Dangerous for the environment

Toxic, Very Toxic

Extremely flammable

Highly flammble

Irritant

]]> Floor Coating https://windustry.co/products/floor-coating-surface-protection/ Fri, 16 Dec 2022 05:57:51 +0000 https://windustry.co/?post_type=industify-project&p=1277

Floor Coating

These substances are mainly used in many industries for the protection of  concrete and cement floors. It can be applied to all surfaces with special compounds such as epoxy, polyurethane etc.

Sales Enquiry
View Catalouge
f1@4x-9
floor-lining-1
f2@4x-9
floor-lining-3
f3@4x-9
floor-lining-1
]]> Brick Lining https://windustry.co/products/brick-lining-surface-protection/ Fri, 16 Dec 2022 05:20:16 +0000 https://windustry.co/?post_type=industify-project&p=1267

Brick Lining

Above and beyond protection against thermal and mechanical stresses, brick linings offer improved chemical resistance since they reduce the direct contact of the medium to the impermeable membrane layer.

Sales Enquiry
View Catalouge
b2@4x-9
brick-lining-1
b1@4x-9
brick-lining-3
b3@4x-9
brick-lining-2
]]> Flake Coating https://windustry.co/products/flake-coating-surface-protection/ Thu, 15 Dec 2022 14:18:18 +0000 https://windustry.co/?post_type=industify-project&p=1251

Flake Coating

Flake coating systems are applied with a trowel and protect metallic components against aggressive media under immersion conditions.

Please contact us for the most suitable coating solutions.

Sales Enquiry
View Catalouge
Varlık 33@4x-9
flake-lining-1
Varlık 55@4x-9
flake-lining-4
Varlık 44@4x-9
flake-lining-3
Varlık 6@4x-9
flake-lining-2
]]> Rubber Lining https://windustry.co/products/rubber-lining-surface-protection/ Thu, 15 Dec 2022 14:08:23 +0000 https://windustry.co/?post_type=industify-project&p=1239

Rubber Lining

With soft rubber and hard rubber lining options, whether in our warehouse or on site, we guarantee the highest quality of service.

Sales Enquiry
View Catalouge
Varlık 12@4x-9
rubber-lining-2
Varlık 22@4x-9
rubber-lining-1
tanker lining product detail
rubber-lining-3
]]> Anti-Caking https://windustry.co/products/anti-caking/ Thu, 15 Dec 2022 13:32:42 +0000 https://windustry.co/?post_type=industify-project&p=1230

Anti-Caking

We have the best solutions for extreme material flow problems. With the anti-caking systems specially produced for this purpose, you can also get optimum protection from build-up bridging and wear.

Sales Enquiry
View Catalouge
PTFE Lining
Specifications Value DIN Norm
Polymer Basis PTFE ISO 1629
Specific Weight 2,16 g/cm3 ISO 1183-1
Hardness Shore 54 Shore D ISO 7619-1
Application Areas Gutters, slides, transfer stations, container
Features Suitable for food contact, Bonding layer, Noise damping , Excellent anti-caking properties
PE Lining
Specifications Value DIN Norm
Polymer Basis PE ISO 1629
Specific Weight 0,93 g/cm ISO 1183-1
Hardness Shore 61 Shore D ISO 7619-1
Application Areas Storage bins, chutes, hoppers, half pipes, cyclons, transfer points, cones, pipe lines
Features Elastic rubber substrate, Bonding layer, Super-ultra high molecular polyethylene surface, Durable PE/rubber bond
PE-UHMW Lining
Specifications Value DIN Norm
Polymer Basis PE-UHMW ISO 1629
Specific Weight 0,94 g/cm3 ISO 1183-1
Hardness Shore 63 Shore D ISO 7619-1
Application Areas Chutes, hoppers, launders, storage bins, transfer points, truck bodies, railway wagons etc.
Features Excellent anti-adhesion properties, Optimum protection against wear and caking, Bonding layer
]]> Ceramic/Rubber Plates https://windustry.co/products/ceramic-rubber-plates/ Thu, 15 Dec 2022 11:49:23 +0000 https://windustry.co/?post_type=industify-project&p=1181

Ceramic/Rubber Plates

W-LOX HD plates are specially designed to give you the best wear protection that you are looking for!

They are basically produced with extreme hard Al₂O₃ ceramic cylinder invulcanized in eastic rubbermatrix to give you the highest abrasion resistance and absorption of impact energy.

They are flexible, durable and easy to install with the safe bolts.

Sales Enquiry
View Catalouge
ceramic-rubber-plate
ceramic-rubber-plates
rubber-cerami-c-w-lox-hd

Areas of Application

  • Lining agaist extreme wear through abrasion at high speed
  • Highest resistance for applications with impact energies and abrasion in transfer points with
    low impact angle
  • For heavy to medium duty applications in mining, sand and gravel plants, quarries and other
    industrial sectors
  • In applications like vibrating feeders, skips, bunkers, chutes, loading/transfer points, hoppers, silos etc.

Benefits

  • Long service life
  • Reduces operating costs
  • Provides easy replacement of wear elements
  • Easy and fast to install
  • Can be produced in special designs as per your requirement
  • Any geometry and size is possible
CERAMIC
Specifications Value Unit
Al₂O₃ Content 92 ± 0.5 wt %
Density 3,63 ± 0,07 G / cm3
Rockwell 45N Hardness ≥ 75
Water Absorption Not Detectable
Colour White
Dimensions of ceramic tiles Ø 20 x 20 mm
- - -
- - -
RUBBER
Specifications Value Norms
Rubber NR/NBR/SBR DIN ISO 1629
Hardness 64 Shore A DIN ISO 7619-1
Abrasion 60 - 150 mm³ DIN ISO 4649
Density ~ 1,12 g / cm³ DIN EN ISO 1183-1
Tensile Strength ~ 23 N / mm³ DIN 53 504
Elongation at Break ~ 510 % DIN 53 504
Rebound Resilience ~ 37 % DIN 53 512
Tear Growth Resistance ~ 25 N / mm ISO 34-1 Methode A
]]>
