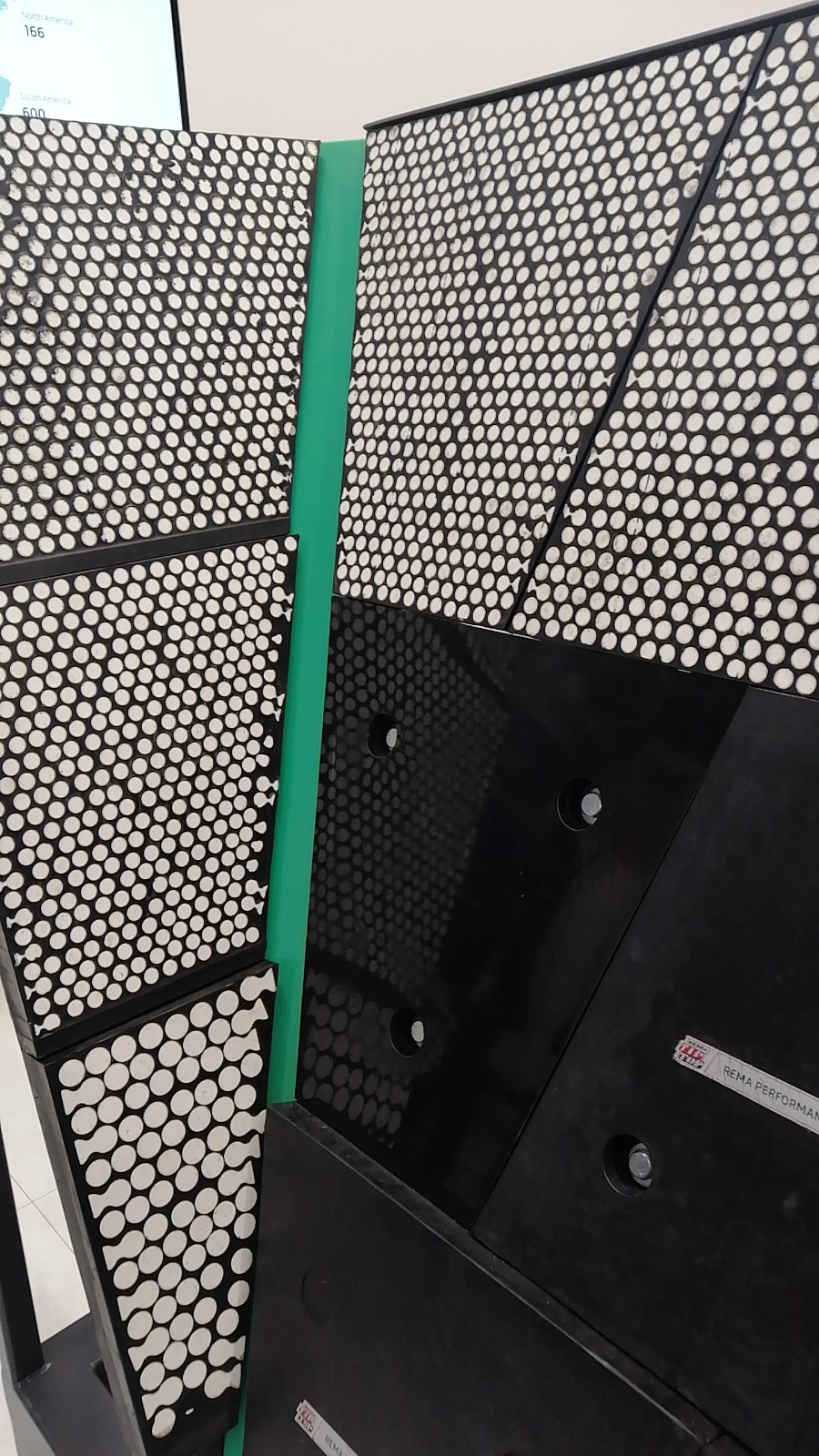

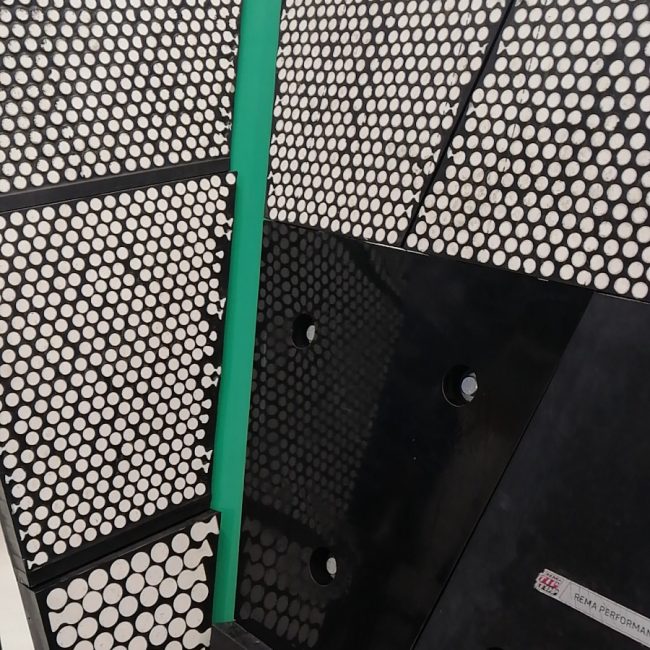

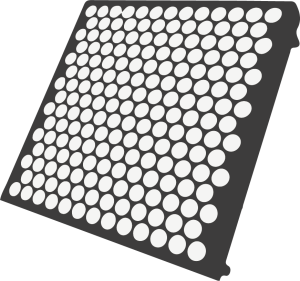

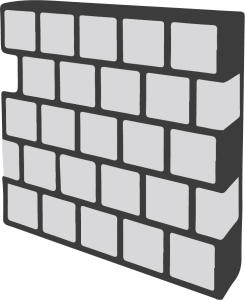

Ceramic/Rubber Plates

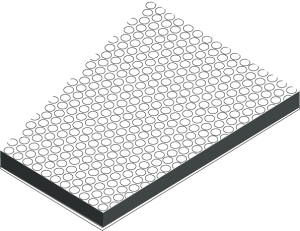

W-LOX HD plates are specially designed to give you the best wear protection that you are looking for!
They are basically produced with extreme hard Al₂O₃ ceramic cylinder invulcanized in eastic rubbermatrix to give you the highest abrasion resistance and absorption of impact energy.
They are flexible, durable and easy to install with the safe bolts.
Areas of Application

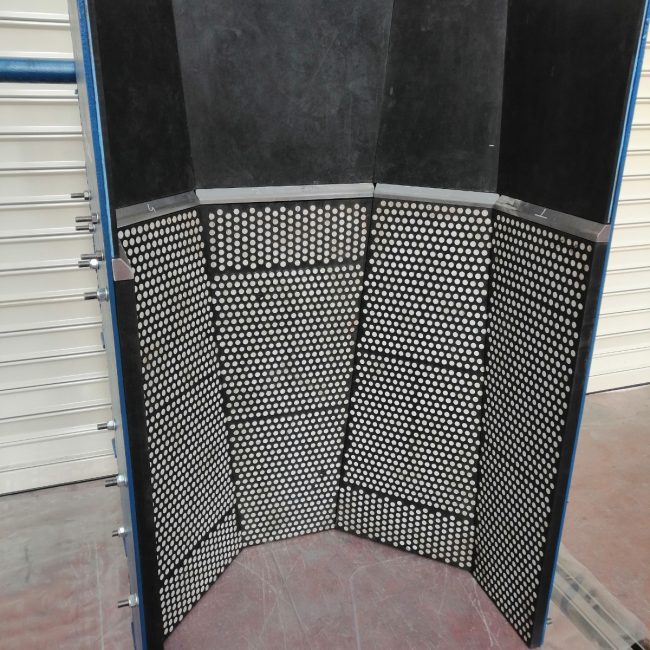

- Lining agaist extreme wear through abrasion at high speed
- Highest resistance for applications with impact energies and abrasion in transfer points with
low impact angle - For heavy to medium duty applications in mining, sand and gravel plants, quarries and other

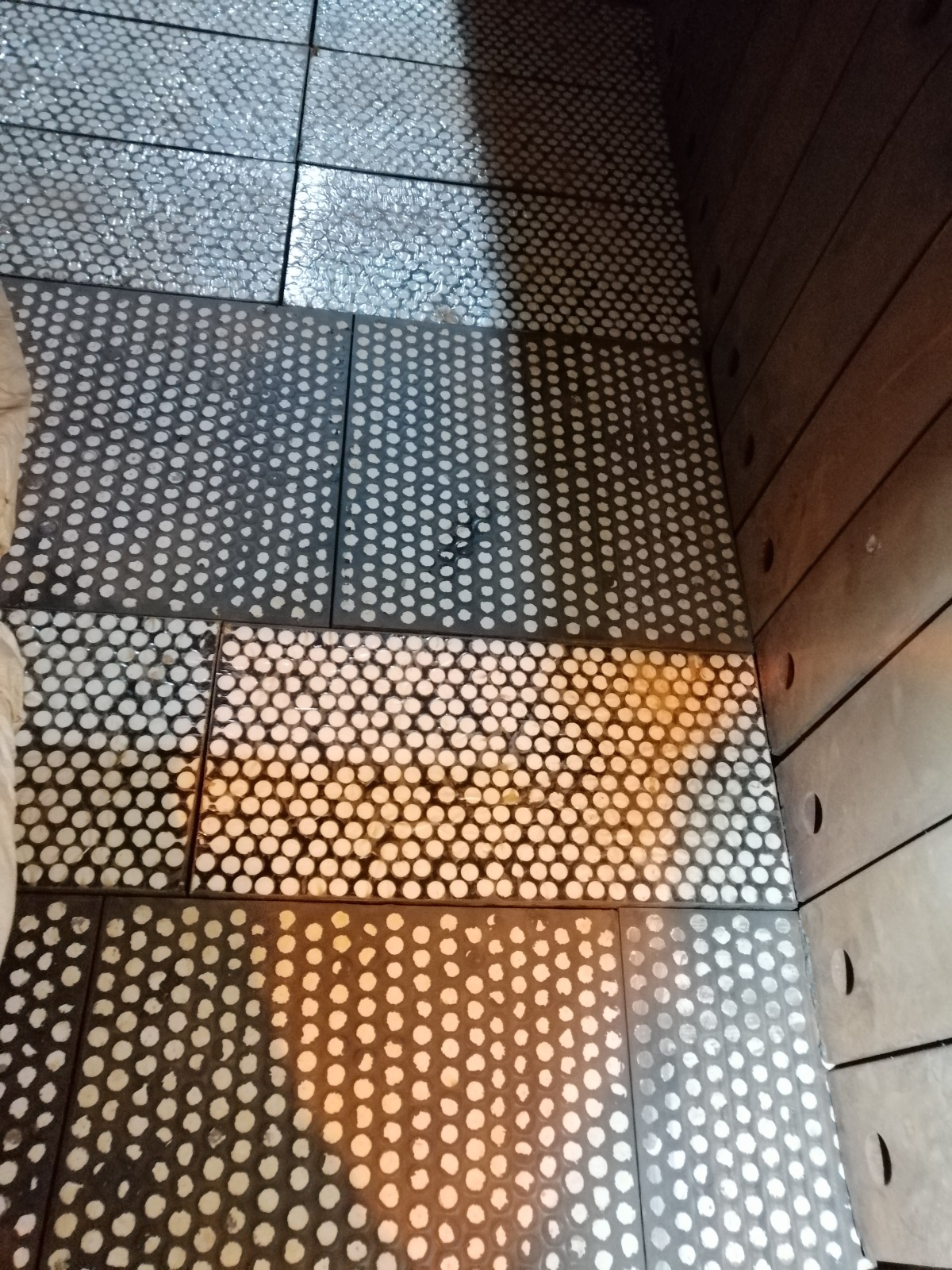

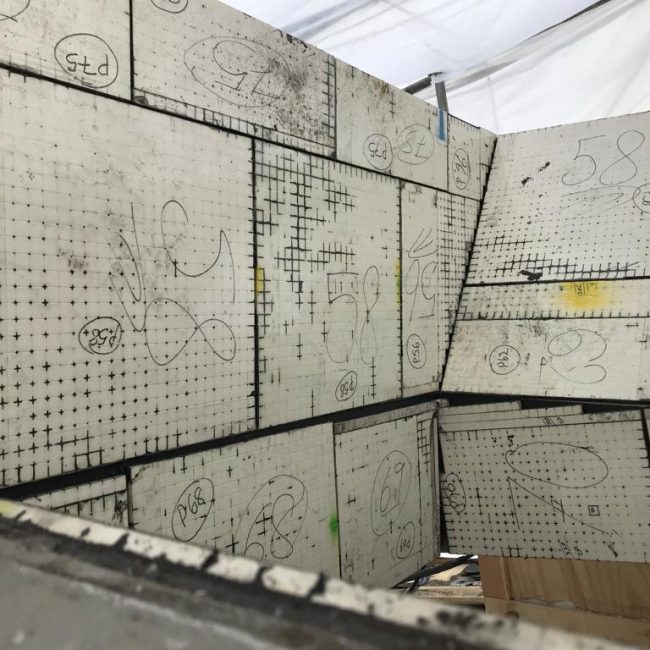

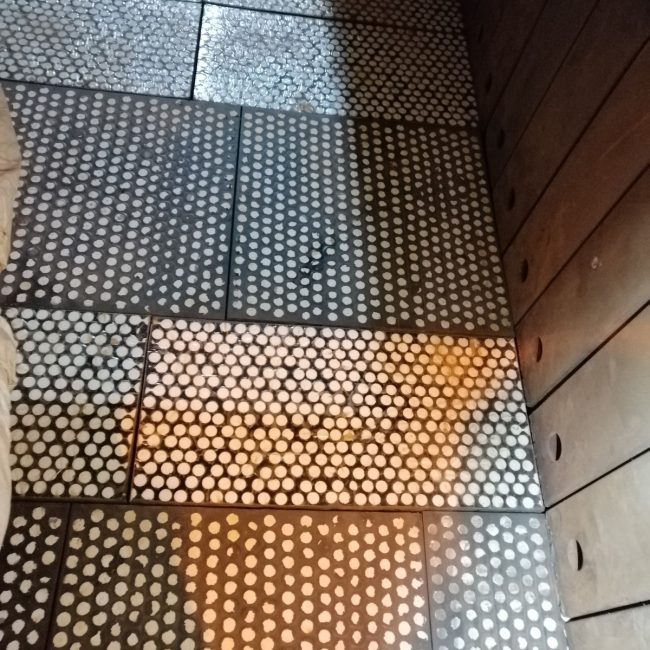

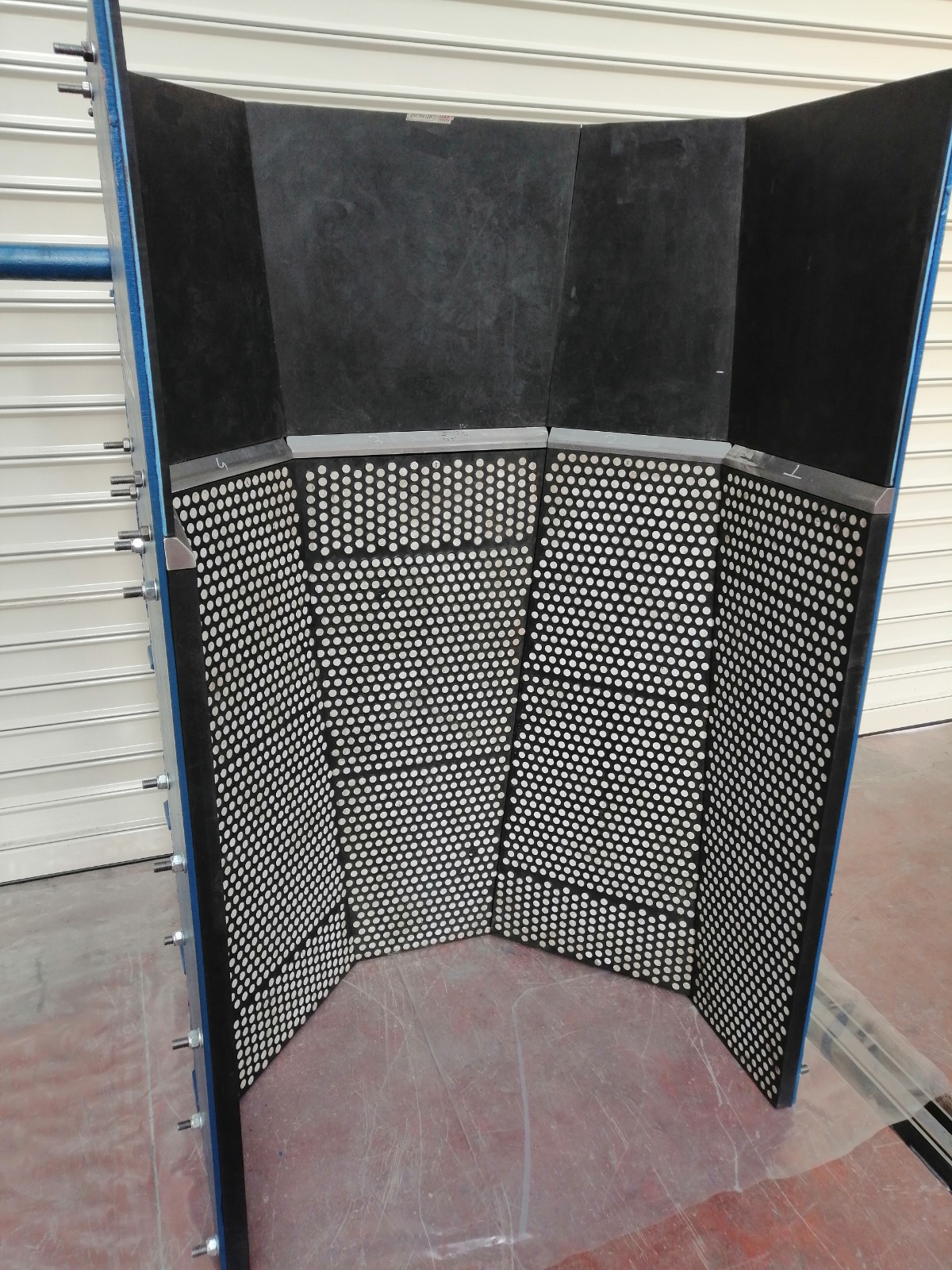

industrial sectors - In applications like vibrating feeders, skips, bunkers, chutes, loading/transfer points, hoppers, silos etc.
Benefits
- Long service life
- Reduces operating costs
- Provides easy replacement of wear elements
- Easy and fast to install
- Can be produced in special designs as per your requirement
- Any geometry and size is possible
| CERAMIC | ||
| Specifications | Value | Unit |
| Al₂O₃ Content | 92 ± 0.5 | wt % |
| Density | 3,63 ± 0,07 | G / cm3 |
| Rockwell 45N Hardness | ≥ 75 | |
| Water Absorption | Not Detectable | |
| Colour | White | |
| Dimensions of ceramic tiles | Ø 20 x 20 | mm |
| - | - | - |
| - | - | - |
| RUBBER | ||
| Specifications | Value | Norms |
| Rubber | NR/NBR/SBR | DIN ISO 1629 |
| Hardness | 64 Shore A | DIN ISO 7619-1 |
| Abrasion | 60 - 150 mm³ | DIN ISO 4649 |
| Density | ~ 1,12 g / cm³ | DIN EN ISO 1183-1 |
| Tensile Strength | ~ 23 N / mm³ | DIN 53 504 |
| Elongation at Break | ~ 510 % | DIN 53 504 |
| Rebound Resilience | ~ 37 % | DIN 53 512 |
| Tear Growth Resistance | ~ 25 N / mm | ISO 34-1 Methode A |
